Installation Manual
Flat Screen TV Mounting Kit
Model: WM-250

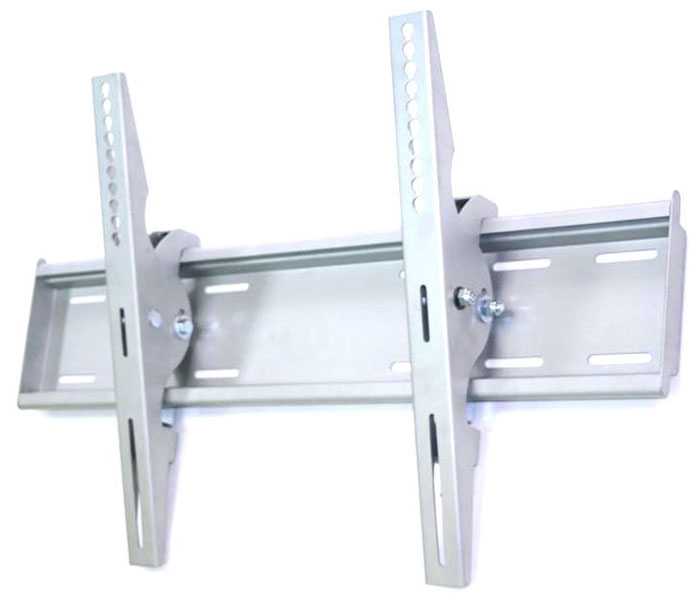

Acrobak WM-250 is universal wall-mount bracket that is designed to fit flat-panel TV from 42 " to 60 ". It offers the security and stability of a fixed wall mount, plus tilting adjustment features.
Features
Solid Steel ConstructionHeavy-gauge steel in a powder-coated finish provides a sleek, high-tech look
Security and Stability of Mounting Kit
Double-stud mounting design and locking security bars for secure the flat screen TV firmly and vertrically in place

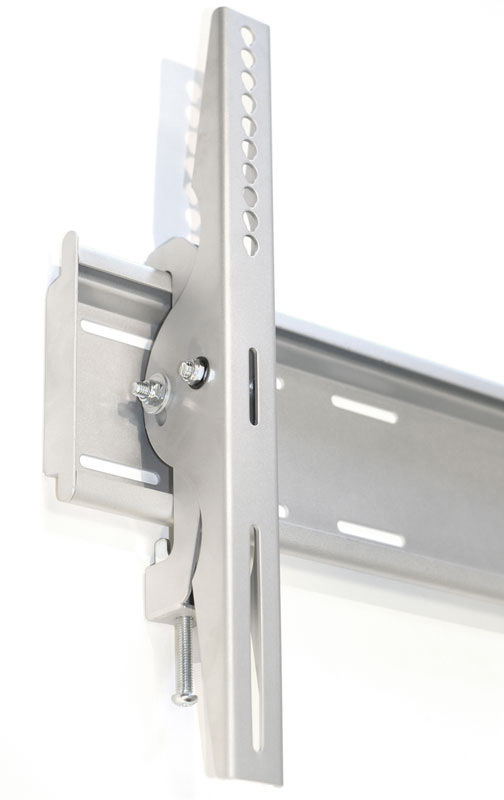

Tilt Adjustment
For precise tilting of display up to 15 ° and optimum viewing while seated without annoying glare
Sliding Lateral On-wall Adjustment
Horizontal post-installation adjustment left or right upto (need exactly number)"
VESA Standard Compatible
Fits all VESA standard flat screen TVs from 42" to 60", and weight upto 60 kg (132 lbs)
Specifications
Model Code: WM-250Silver Color
Product Type Specifications
| • | Flat Screen Size Range: 42” ~ 60 ” |
| • | Max Load: up to 60 kg ( 132 lbs) |
| • | Tilt Range: down 15° |
| • | Slim designed 9 cm (3.54") off the wall mounting profile |
| • | VESA Mounting Bracket: Fits most of TVs and all VESA standard from 42" to 60" TVs |

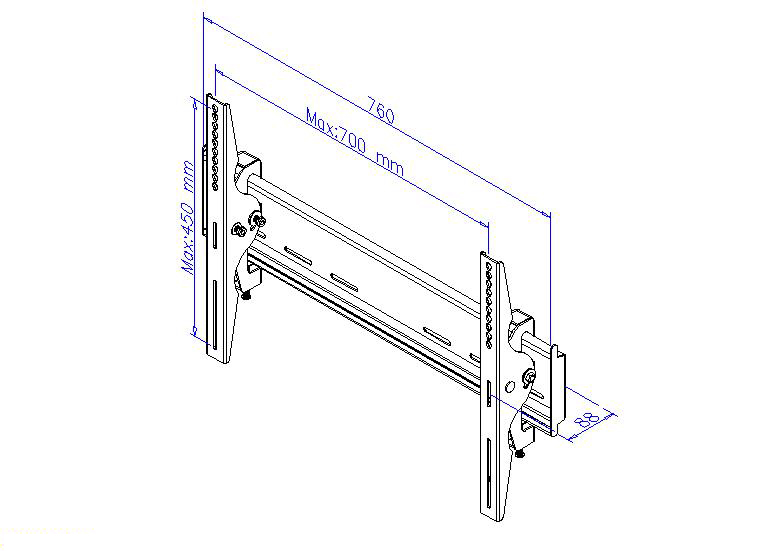

Product Specifications
| • | Net Weight: | |
| • | Product Width: | 29.92" / 76cm |
| • | Product Depth: | 3.46” / 8.8 cm |
| • | Product Height: | 19.25” / 48.9 cm |
Package Specifications
| • | Package Weight: | 20.2 lbs / 9.2 kg |
| • | Package Width: | 30.24” / 76.8 cm |
| • | Package Deptht: | 7.09” / 18.0 cm |
| • | Package Height: | 5.31” / 13.5 cm |
Package Contents:
| • | Wall Plate | x 1 |
| • | Vertical Adjustment Bar | x 2 |
| • | M~ Screws | |
| • | Washers | |
| • | Spacers | |
| • | Installation Manual | x 1 |
